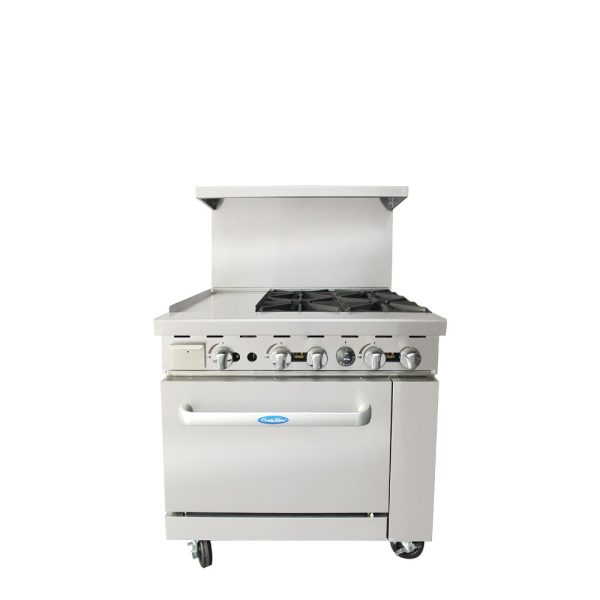

AGR-4B12GL — 36″ Gas Range with Four (4) Open Burners & 12″ Griddle

Standard Features:

Stainless steel exterior including front, back
sides, kick plate, back guard and over shelf
36” combination ranges with either a 12” or
24” griddle top with 2 or 4 burners
Heavy duty 3/4” thick polished steel griddle
plate
Drip tray provided under burners to catch
grease drippings
32,000 BTU top burners, 27,000 BTU griddle
& 27,000 BTU oven burners
Oven temperature range between 175°F – 550°F
Standing pilot for open top burners
Oven pilot with 100% safety shut off
Enamel interior oven for easy cleaning
Multiple position oven rack guides
Two (2) chrome oven rack per oven standard
AGR-4B12GL is available in Natural
AGR-4B12GR are available in Natural and
Propane
3/4” NPT rear gas connection and regulator
provided
Four (4) casters standard

Description

Model	Gas Type	Burner Name	BTU’s	Number of Burners	Valve Types	Oven Size (inch)	Hot Plates Working Area (inch)	Griddle Working Area (inch)	Exterior Dimensions (inch)	Net Weight (lbs)	Gross Weight (lbs)
AGR-4B12GL	NG	Hot Plates	128,000	4	Pilot Light	26″ 1/2 x 26″ x 14″	4pcs 11″ 4/5 x 11″ 4/5	12″ x 20″ 5/8	36″ x 31″ x 57″ 3/8	462	590
		Griddle	21,000	1
		Oven	27,000	1
